HDS603高频激光测距
2014-06-20 00:03:23来源：浏览：3292
| 基本参数 |  | |
| 1.测量范围10-1245MM | ||
| 2.精度±0.1%， 最高可达±2um | ||
| 3.分辨率 ±0.01% 最高可达0.2um | ||
| 4.频率高达9.4 kHz | ||

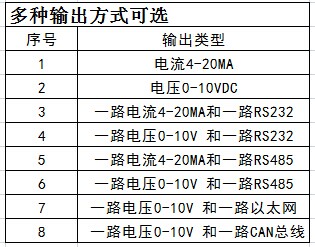

| 5.串口/Ethernet/CAN +4...20 mA/0...10V输出 | ||
| 6.更稳定的蓝光光源可选 | ||
| Light source | red semiconductor laser, 660 nm wavelength | |
| UV semiconductor laser 405 nm wavelength | ||
| output power | 0.3 mW- ≤0,95 mW-20 mW | |
| laser safety Class | 3R (IEC60825-1)/2 (IEC60825-1)/3В (IEC60825-1) | |
| output digital | RS232(max.460,8 kbit/s)or RS485(max.921,6 kbit/s)or RS232 and CAN V2.0B(max 1Mbit/s)or Ethernet and(RS32 or RS485) | |
| output analog | 4…20 mA (£500 Ω load) or 0…10 V | |
| Max. measurement frequency, | 9400HZ | |
| Temperature drift | 0,02% of the range/0С | |
| Synchronization input | 2,4 – 5 V (CMOS, TTL) | |
| Power supply, V | 9 …36 | |
| Power consumption, W | 1.5W-2W | |
| Enclosure rating | IP67 ( for the sensors with cable connector only) | |
| Vibration | 20g/10…1000Hz, 6 hours, for each of XYZ axes | |
| Operation temperature, °С | -10…+60, (-30…+60 for the sensors with in-built heater) | |
| Relative humidity | 5-95% (no condensation | |
| Storage temperature | -20…+70 , °С | |
| Housing material | aluminum | |
| Weight (without cable), | 100 gram | |
| Measurement range, | 10 ... 12 mm | |
| Linearity | ±2um | |
| Resolution | 0.2um | |
| Measurement range, | 15 ... 20 mm | |
| Linearity | ±5um | |
| Resolution | 0.5um | |
| Measurement range, | 15 ... 25mm | |
| Linearity | ±10um | |
| Resolution | 1um | |
| Measurement range, | 25 ... 35 mm | |
| Linearity | ±10um | |
| Resolution | 1um | |
| Measurement range, | 30 ... 45 mm | |
| Linearity | ±15um | |
| Resolution | 1.5um | |
| Measurement range, | 45 ... 95 mm | |
| Linearity | ±50um | |
| Resolution | 5um | |
| Measurement range, | 60 ... 160 mm | |
| Linearity | ±100um | |
| Resolution | 10um | |
| Measurement range, | 90 ... 290 mm | |
| Linearity | ±100um | |
| Resolution | 10um | |
| Measurement range, | 80 ...330 mm | |
| Linearity | ±250um | |
| Resolution | 25um | |
| Measurement range, | , 125 ... 625 mm | |
| Linearity | ±500um | |
| Resolution | 50um | |
| Measurement range, | 145 ... 895 mm | |
| Linearity | ±750um | |
| Resolution | 75um | |
| Measurement range, | 245 ... 1245 mm | |
| Linearity | 1000um | |
| Resolution | 100um | |

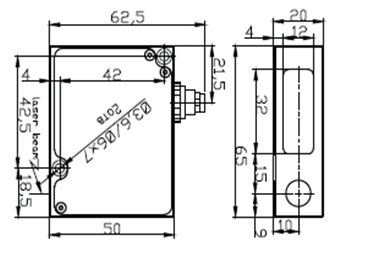

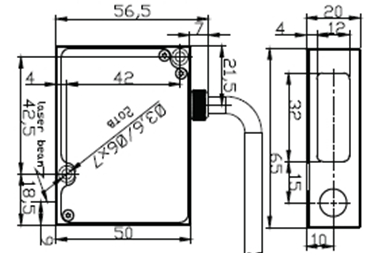

| 尺寸图 | ||
   |
||
|
|
||
|
| ||
| 更详细信息请电话或邮件咨询！咨询QQ：747228824 |
| |
